Time domain baseline correction (NMR)

Here we show how to baseline correct dataset in the time domain before applying FFT.

The example spectra were downloaded from a historical University of Tubingen NMR processing page describing DC-offset correction. That original external page is no longer reliably reachable, so the example below focuses on the SpectroChemPy workflow directly.

import warnings

import spectrochempy as scp

# This example uses Bruker NMR data.
#
# Requires the official ``spectrochempy-nmr`` plugin.
# Install with: ``python -m pip install "spectrochempy[nmr]"``.

path = scp.preferences.datadir / "nmrdata" / "bruker" / "tests" / "nmr" / "h3po4"
fid = scp.nmr.read(path, expno=4)
prefs = scp.preferences
prefs.figure.figsize = (7, 3)

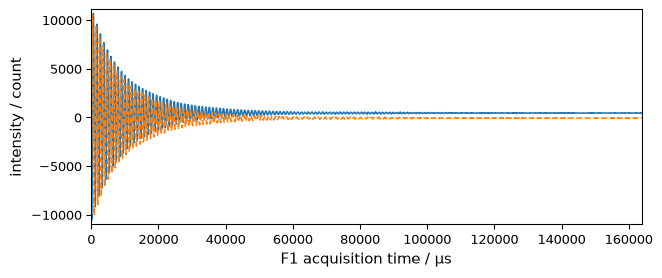

_ = fid.plot(show_complex=True)

spec = scp.fft(fid)

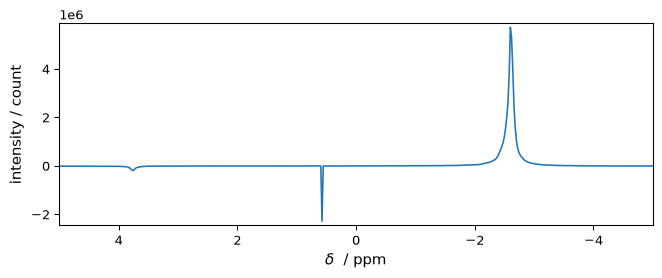

_ = spec.plot(xlim=(5, -5))

We can see that in the middle of the spectrum there are an artifact (a transmitter spike) due to different DC offset between imaginary.

In SpectroChemPy, for now, we provide a simple kind of dc correction using the dccommand.

dc_corrected_fid = fid.dc()
spec = scp.fft(dc_corrected_fid)

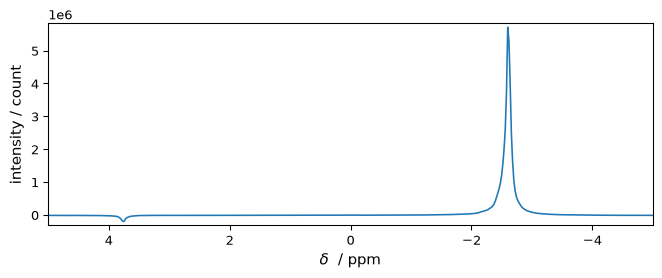

_ = spec.plot(xlim=(5, -5))

path = scp.preferences.datadir / "nmrdata" / "bruker" / "tests" / "nmr" / "cadmium"
# This compact documentation fixture intentionally contains fewer points than
# advertised by its original Bruker metadata. The reader safely keeps all
# available points, so the resulting shape warning is not useful to the example.
with warnings.catch_warnings():
    warnings.filterwarnings(
        "ignore",
        message=r"\(956,\)cannot be shaped into\(1024,\)",
        category=UserWarning,
    )
    fid2 = scp.nmr.read(path, expno=100)

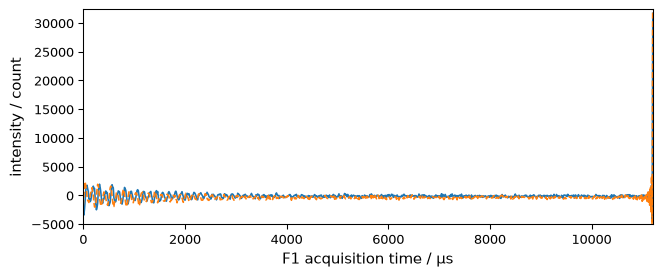

_ = fid2.plot(show_complex=True)

spec2 = scp.fft(fid2)

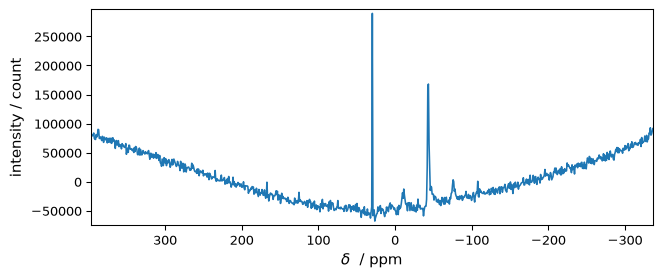

_ = spec2.plot()

dc_corrected_fid2 = fid2.dc()
spec2 = scp.fft(dc_corrected_fid2)

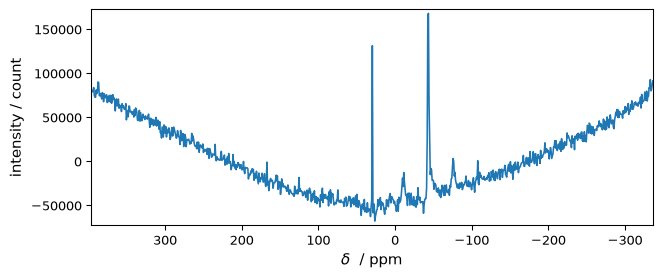

_ = spec2.plot()
