NDDataset coordinates example
In this example, we show how coordinates can be used in SpectroChemPy
import spectrochempy as scp

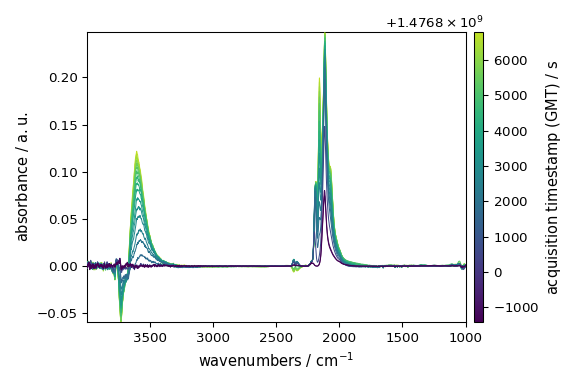

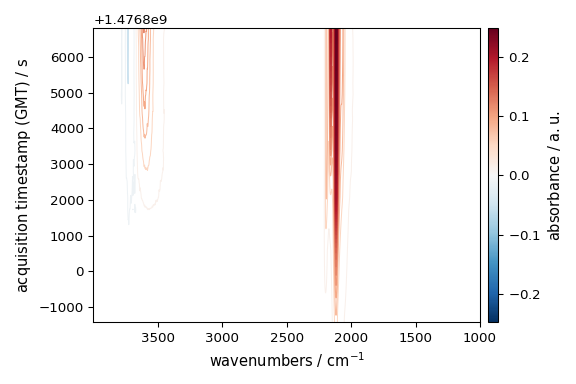

Uploading a dataset
X has two coordinates:
* wavenumbers named “x”
* and timestamps (i.e., the time of recording) named “y”.
To display them individually use the x and y attributes of
the dataset X:
and y:
Setting new coordinates
In this example, each experiment have a timestamp corresponds to the time when a given pressure of CO in the infrared cell was set.
Hence, it would be interesting to replace the “useless” timestamps (y )
by a pressure coordinates:
pressures = [
0.00300,
0.00400,
0.00900,
0.01400,
0.02100,
0.02600,
0.03600,
0.05100,
0.09300,
0.15000,
0.20300,
0.30000,
0.40400,
0.50300,
0.60200,
0.70200,
0.80100,
0.90500,
1.00400,
]
A first way to do this is to replace the time coordinates by the pressure coordinate
(we first make a copy of the time coordinates for later use the original will be destroyed by the following operation)
Now we perform the replacement with this new coordinate:
c_pressures = scp.Coord(pressures, title="pressure", units="torr")
X.y = c_pressures
X.y
A second way is to affect several coordinates to the corresponding dimension. To do this, the simplest is to affect a list of coordinates instead of a single one:
X.y = [c_times, c_pressures]
X.y

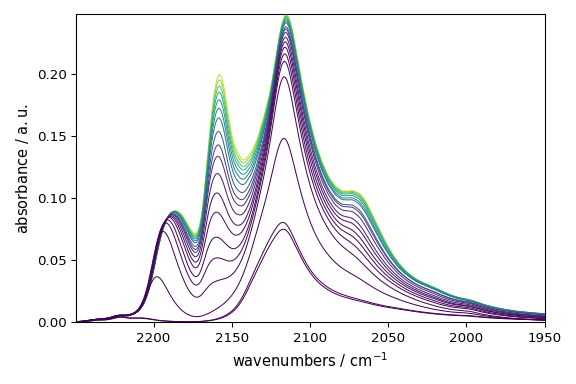

By default, the current coordinate is the first one (here c_times ).
For example, it will be used for plotting:
To seamlessly work with the second coordinates (pressures), we can change the default coordinate:
X.y.select(2) # to select coordinate `_2`
X.y.default

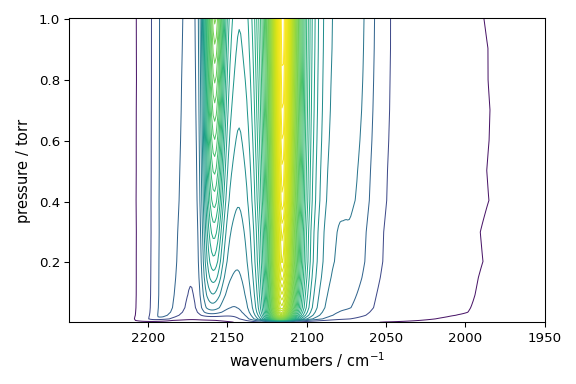

Let’s now plot the spectral range of interest. The default coordinate is now used:
Coord: [float64] torr (size: 19)
The same can be done for the x coordinates.

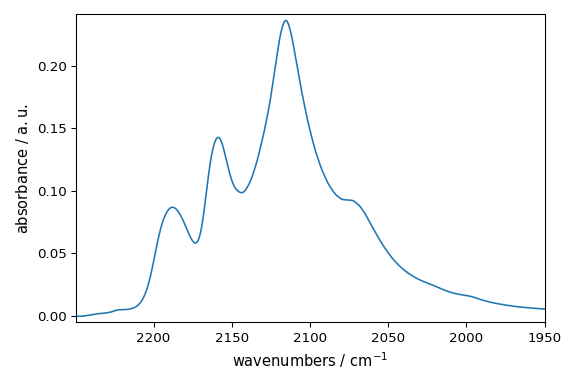

Let’s take for instance row with index 10 of the previous dataset
row10 = X_[10].squeeze()
_ = row10.plot()
_ = row10.coordset

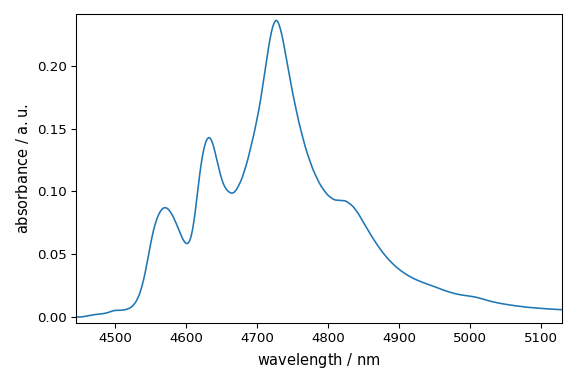

Now we wants to add a coordinate with the wavelength instead of wavenumber.
c_wavenumber = row10.x.copy()
c_wavelength = row10.x.to("nanometer")
print(c_wavenumber, c_wavelength)
row10.x = [c_wavenumber, c_wavelength]
row10.x.select(2)
_ = row10.plot()
Coord: [float64] cm⁻¹ (size: 312) Coord: [float64] nm (size: 312)
This ends the example ! The following line can be uncommented if no plot shows when running the .py script with python
# scp.show()
Total running time of the script: (0 minutes 1.092 seconds)
