Reading a PerkinElmer SP file (plugin)

This example shows how to read a PerkinElmer .sp binary IR file using the optional spectrochempy-perkinelmer plugin.

Hint

Requires the official ``spectrochempy-perkinelmer`` plugin. Install with: pip install spectrochempy[perkinelmer].

import spectrochempy as scp

Read the sample PerkinElmer file

The PerkinElmer reader is available through the namespaced API scp.perkinelmer. A single-spectrum .sp file is loaded as an NDDataset with wavelength coordinates and available metadata.

datadir = scp.preferences.datadir
filename = datadir / "irdata" / "perkinelmer" / "spectra.sp"

dataset = scp.perkinelmer.read(filename)

Display the dataset summary:

dataset

NDDataset [spectra] — float64, shape: (y:1, x:3301), a.u.

name

:

spectra

author

:

runner@runnervmvrwv9

created

:

2026-08-11 07:17:39+00:00

description

:

Spectrum at 5673,-2148,294 Micrometers Aperture: 100,100

history

:

2026-08-11 07:17:39+00:00> Imported from PerkinElmer .sp file /home/runner/.spectrochempy/testdata/irdata/perkinelmer/spectra.sp.

Data

title

:

intensity

values

:

[[ 0.03724 0.03719 ... 0.003684 0.004176]] a.u.

shape

:

(y:1, x:3301)

Dimension `x`

size

:

3301

title

:

wavelength

coordinates

:

[ 4000 3999 ... 701 700] nm

Dimension `y`

size

:

1

title

:

spectrum index

coordinates

:

[ 0]

The dataset preserves available metadata from the PerkinElmer file:

print(f"Instrument model: {dataset.meta.instrument_model}")
print(f"Detector:        {dataset.meta.detector}")
print(f"Source:          {dataset.meta.source}")
print(f"Analyst:         {dataset.meta.analyst}")
print(f"Date:            {dataset.meta.date}")
print(f"Accumulations:   {dataset.meta.accumulations}")

Instrument model: Spectrum One
Detector:        MCT
Source:          MIR
Analyst:         None
Date:            Thu Mar 09 09:17:56 2006
Accumulations:   32

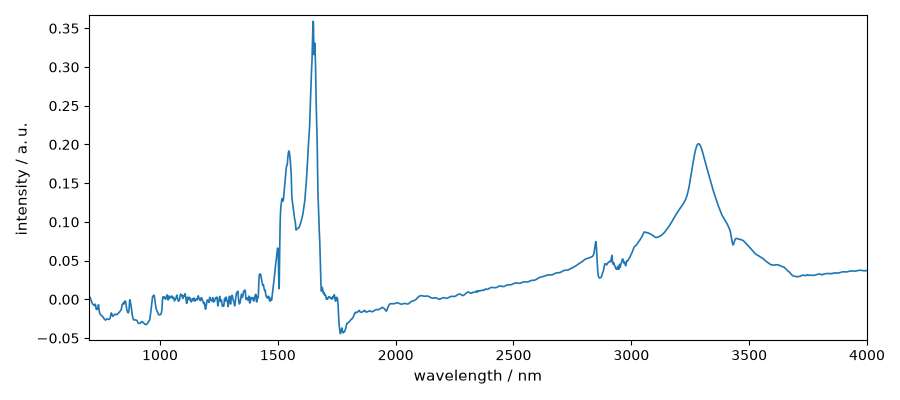

Plot the spectrum:

_ = dataset.plot()

Use the plotted spectrum as the gallery thumbnail. sphinx_gallery_thumbnail_number = 1

This ends the example ! The following line can be removed or commented when the example is run as a notebook (ipynb).

# scp.show()
